Reliable PCI-E X1 to X16 USB3.0 6P W-X16 Riser Adapter

A Flexible PCI-E Expansion Solution for System Integration

The PCI-E X1 to X16 USB3.0 6P W-X16 is a compact riser adapter designed to relocate an x16-format PCI Express add-on card away from the motherboard. Its separated board structure gives system integrators more freedom when direct card installation is limited by enclosure space, component spacing, airflow planning, or maintenance access.

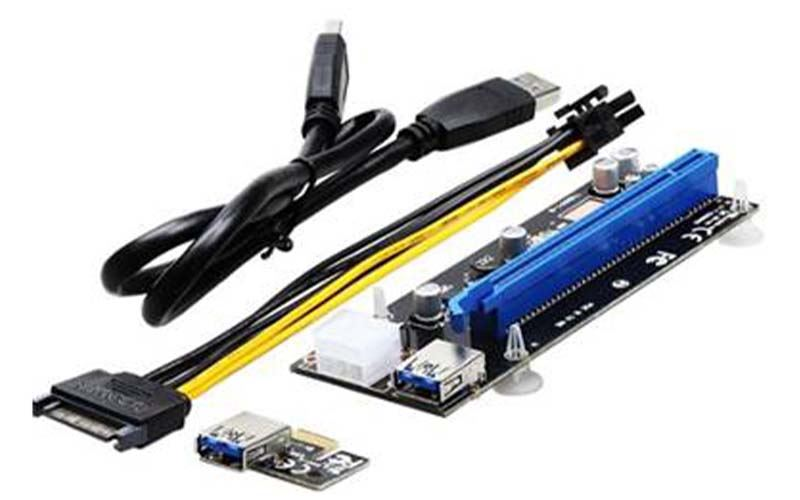

The assembly uses a PCI-E x1 adapter on the motherboard side, a USB-style cable connection, and an x16 riser board on the expansion-card side. The W-X16 configuration features a blue x16 slot on a black printed circuit board and includes the corresponding cable connections shown for this model.

The riser format is especially useful when a standard motherboard slot position does not match the required location of the add-on card. By separating the host adapter from the expansion slot, designers can plan card orientation according to enclosure dimensions, cooling paths, connector access, and service requirements.

The compact 12.5 cm by 4.5 cm riser board also makes the component easier to evaluate for custom assemblies. For distributors and project buyers, the clearly defined dimensions and cable lengths support faster specification review, quotation comparison, and purchasing communication.

Key Features and Customer Value

Technical Specifications

Connection Structure and Installation Value

The motherboard-side PCI-E x1 adapter connects to the x16 riser board through the 60 cm cable. The selected add-on card is installed in the blue x16 slot, while the 23 cm 15-pin-to-6-pin cable provides the corresponding riser-board power connection. This modular arrangement can simplify card spacing, internal cable routing, maintenance, and component replacement in a compatible system.

Before installation, disconnect system power and verify every connection. Insert the adapter, cable, add-on card, and power connector fully. Avoid excessive cable bending and secure the riser board and card to prevent movement during operation or transportation.

Compatibility and Application Considerations

Compatibility depends on the host motherboard, available PCI-E lane width, power supply, enclosure clearance, add-on card dimensions, and intended workload. Because the upstream connection is PCI-E x1, the physical x16 slot does not create full x16 bandwidth. Buyers should confirm the bandwidth and power requirements of the intended card before placing an order.

No universal claim is made regarding chipset, operating system, PCI-E generation, maximum transfer rate, or compatibility with every expansion card. For project use, customers should provide the motherboard model, add-on card model, system configuration, and application requirements for technical confirmation.

Recommended B2B Applications

• Computer accessory distribution and wholesale sourcing

• System integration and custom equipment assembly

• Replacement-part purchasing and repair projects

• Prototype development and internal layout testing

• Project-based procurement requiring an x1-to-x16 riser structure

Request a Quotation for PCI-E X1 to X16 USB3.0 6P W-X16

For OEM, wholesale, distribution, or project sourcing, send your required quantity, destination market, packaging request, inspection standard, and target delivery schedule. Please also provide the motherboard model and intended add-on card so that the relevant configuration can be reviewed.
