Reliable PCI Express 8-Port RS-232 Serial Card W-958E-8S for Multi-Port Communication

Overview

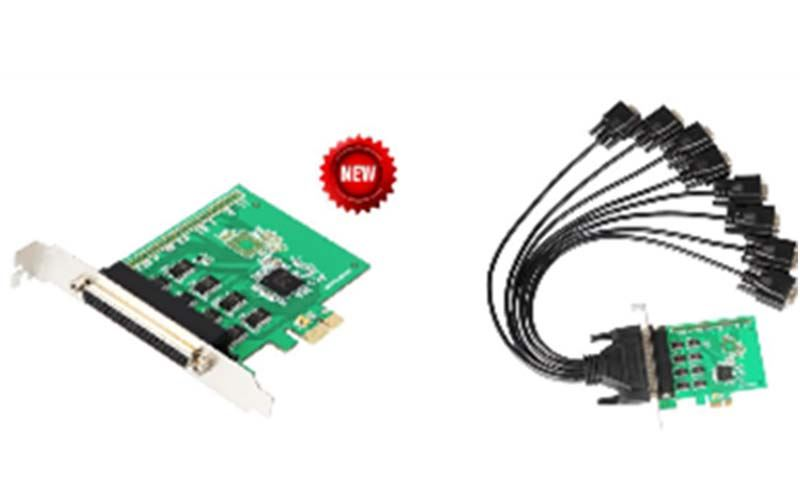

The W-958E-8S PCI Express 8 port RS-232 card is designed to expand a computer with up to eight RS232 serial ports through a single PCI Express x1 slot. It is a practical choice for systems that need multiple serial connections while preserving a compact host interface. With PCI-Express 2.0 compliance, backward compatibility with PCI-Express 1.1 and throughput up to 2.5Gbps on the single-lane PCIe interface, the card provides a clear path for adding legacy serial connectivity to compatible computer platforms.

Each serial port integrates an on-chip 256-byte FIFO in both transmit and receive paths. This architecture helps the host system manage serial data efficiently when several connected devices are communicating. The card also supports a re-map function for legacy ports, making it suitable for applications where traditional serial port addressing remains important.

Key Features of W-958E-8S PCI Express 8-Port RS-232 Card

Technical Specifications

System Compatibility

The W-958E-8S is intended for computer systems that provide a compatible PCI Express expansion slot. Supported operating systems listed for this card include DOS, Windows 8.1, Windows 7, Windows Vista, Windows XP, Windows 2000, Windows Server 2003-2008 in 32-bit and 64-bit environments, Linux, and Mac OS/X 10.5.

For Windows-based deployments, WHQL software drivers are available. Before purchasing for a new or upgraded system, buyers should confirm the required operating system version, available PCIe slot and application environment to ensure the card matches the target installation.

Why Choose an 8-Port PCIe RS232 Card?

A multi-port serial card can reduce the need for multiple separate adapters when a host computer must communicate with several RS232 devices. The W-958E-8S combines eight serial ports with one PCIe x1 connection, helping system builders organize serial expansion through a single add-on card.

Its wide specified operating temperature range also gives buyers a clearly defined environmental parameter for equipment planning. The included 8-port serial fan-out cable brings the card's serial connections out from the installed board, while the user manual and software driver CD support setup and deployment.

Typical Integration Considerations

When evaluating the W-958E-8S for a B2B project, procurement teams and system integrators can compare the following points with their application requirements:

• Number of required RS232 connections: up to eight ports.

• Host interface: PCI Express x1.

• PCIe compatibility: Specification 2.0 with backward compatibility to 1.1.

• Required operating temperature: -40°C to 85°C.

• Driver environment: listed Windows, DOS, Linux and Mac OS/X compatibility.

• Physical installation space: approximately 100 mm × 120.0 mm × 21.5 mm.

• Cabling requirement: one RS232 8-port serial fan-out cable is included.

Package Contents

Request Product Information

If your project requires an 8-port RS232 PCI Express card, send us your target operating system, host computer or motherboard information, required quantity, application type and any compatibility questions. Our sales team can use these details to help you confirm whether the W-958E-8Smatches your serial communication requirements and provide the relevant commercial information for your inquiry.
