USB C Plug-USB3.0*2+USB2.0+PD+ C DATA +HDMI+SD/TF2.0+LAN

Expand One USB-C Port into Nine Practical Connections

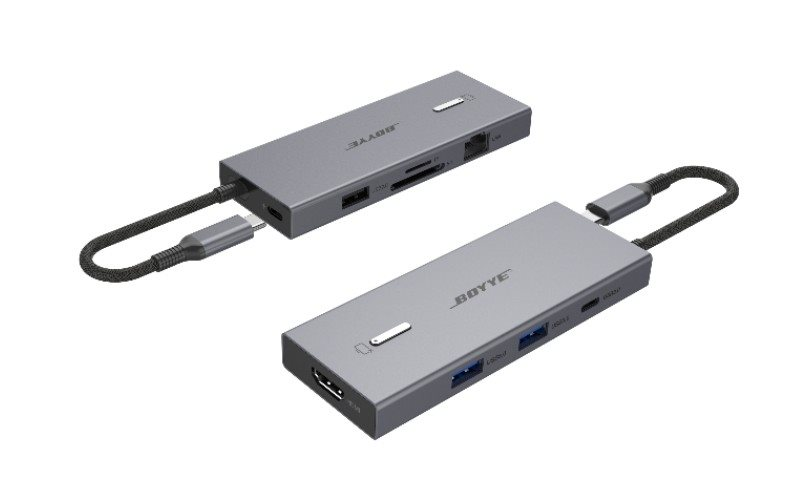

The UC-911 is a professional 9-in-1 USB-C hub designed for users who need more connectivity without carrying several separate adapters. Its integrated USB Type-C plug expands a compatible host device into two 5Gbps USB-A ports, one USB 2.0 port, one USB-C data port, HDMI, USB-C Power Delivery, Gigabit Ethernet, and separate SD and TF/microSD card slots.

This balanced interface combination is suitable for corporate offices, meeting rooms, home workstations, educational projects, IT equipment packages, creative teams, and business travel. Users can connect storage devices, keyboards, mice, card readers, monitors, projectors, and wired networks while supplying power through one compact USB-C hub.

5Gbps USB-A and USB-C Data Connectivity

Two USB 3.1 Gen 1 ports provide data transfer rates up to 5Gbps. They are suitable for flash drives, portable storage devices, printers, card readers, and other compatible USB peripherals.

A separate USB 2.0 port supports speeds up to 480Mbps and is useful for lower-bandwidth equipment such as a keyboard, mouse, wireless receiver, or basic office accessory. Separating high-speed storage devices from lower-speed peripherals can help users organize their workstation more efficiently.

The dedicated USB-C data interface also supports transfer rates up to 5Gbps, providing a reversible connection for compatible Type-C storage devices and peripherals. Actual transmission performance depends on the host computer, connected device, cable, storage media, operating system, and file type.

4K@60Hz HDMI Display Output

The integrated HDMI port supports display resolutions up to 4K at 60Hz when connected to compatible equipment. Users can mirror or extend content to a monitor, television, or projector for presentations, spreadsheet analysis, training, video playback, digital signage, and larger-screen productivity.

For video output, the connected laptop or desktop computer must support video transmission through its USB-C port. Final resolution and refresh rate may also depend on the host computer, operating system, HDMI cable, monitor, and source content.

One-Touch HDMI Screen-Off Control

A key feature of the UC-911 is its dedicated HDMI screen-off switch. The button allows a presenter to temporarily stop the external display without physically disconnecting the HDMI cable.

During a business meeting, users can pause the projected screen before opening another document, changing applications, checking confidential information, or locating files that should not be shown to the audience. The button is also useful when screen sharing needs to stop immediately because an unexpected person enters a private meeting.

Compared with manually unplugging the HDMI cable or searching for display controls on the computer, the one-touch switch provides faster and more convenient presentation management.

The feature helps reduce accidental on-screen exposure, but it should not be considered a replacement for passwords, file permissions, encryption, or company information-security procedures.

Up to 100W USB-C Power Delivery Input

The USB-C PD port accepts up to 100W from a compatible Power Delivery charger. It allows the hub to pass power to a supported laptop while data, display, card-reading, and network functions remain available.

This helps users maintain a productive desktop setup without occupying another host port for charging. It is especially valuable for laptops with a limited number of USB-C connections.

Final charging performance depends on the charger, cable, host computer, and power negotiation. The power received by the laptop may be lower than 100W because the USB-C hub also requires operating power.

Gigabit Ethernet for Stable Wired Networking

The RJ45 port supports 10Mbps, 100Mbps, and 1000Mbps Ethernet. It provides a stable wired-network option for offices, hotels, conference rooms, classrooms, and other environments where Wi-Fi speed or reliability may be inconsistent.

Gigabit Ethernet capability makes the UC-911 suitable for video conferences, cloud applications, large file transfers, enterprise systems, and other network-dependent business tasks.

SD and TF/microSD Card Access

Separate SD and TF/microSD card slots support data speeds up to 480Mbps. They provide convenient access to photographs, videos, documents, and project files stored on removable memory cards.

This dual-card design is useful for photographers, content creators, educators, office users, industrial equipment operators, and customers who regularly transfer files from cameras, recorders, or portable devices.

UC-911 Technical Specifications

Specification	Details
Model Number	UC-911
Product Type	9-in-1 USB-C multiport hub
Host Connector	Integrated USB Type-C plug
USB-A Ports	2 × USB 3.1 Gen 1 and 1 × USB 2.0
USB 3.1 Gen 1 Speed	Up to 5Gbps
USB 2.0 Speed	Up to 480Mbps
USB-C Data Port	Up to 5Gbps
HDMI Output	Up to 4K@60Hz
HDMI Control	One-touch external screen-off switch
USB-C PD Input	Up to 100W
Ethernet	10/100/1000Mbps RJ45
Card Slots	SD and TF/microSD, up to 480Mbps
Compatible Equipment	Desktop computers, laptops, monitors, and card-reader applications
Delivery Terms	EXW; FOB/FCA Shenzhen or Hong Kong

Commercial Advantages for B2B Buyers

• Nine frequently requested interfaces in one compact hub

• Mixed high-speed and legacy USB connectivity

• 4K@60Hz display support for professional workspaces

• One-touch HDMI control for presentation privacy

• Gigabit wired networking for reliable connectivity

• Up to 100W PD input for compatible laptops

• Suitable for distribution, retail, corporate procurement, and project supply

The UC-911 can be marketed through computer-accessory distributors, electronics retailers, corporate purchasing programs, educational deployments, system integrators, promotional projects, and online B2B channels.

Request a Wholesale Quotation

For an accurate quotation, provide your required quantity, destination market, target device models, preferred Incoterm, packaging requirements, and requested compliance documents.

Buyers may also request information about MOQ, sample availability, production lead time, private labeling, customized packaging, warranty terms, carton specifications, compatibility testing, and volume pricing.

Contact our sales team to discuss your UC-911 USB-C hub sourcing requirements and receive a tailored commercial offer for your distribution channel or project.
