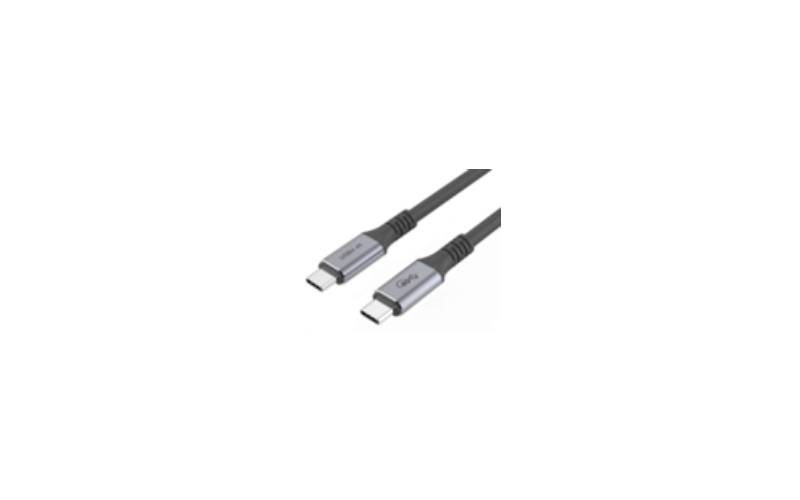

1M USB4 40Gbps USB-C to USB-C Cable 240W PD 8K WHZXC13

One Cable for Power, Data and High-Resolution Video

The WHZXC13 USB4 cable combines high-speed data transfer, USB Power Delivery and video transmission through one USB-C to USB-C connection. It is designed for professional users, system integrators, distributors and accessory buyers who need a versatile cable for laptops, docking stations, external SSDs, monitors and other full-function USB Type-C devices.

With a data transfer rate of up to 40Gbps, this 1M USB4 cable helps transfer large files, high-resolution media and project data efficiently between compatible devices. Its broad interface support also enables connections with USB 3.1, USB 3.0 and USB 2.0 equipment, with actual performance determined by the connected host, peripheral and interface standard.

Up to 240W USB Power Delivery

WHZXC13 supports USB Power Delivery up to 240W at 48V/5A when paired with compatible Extended Power Range equipment. It also supports 28V and 36V high-power USB PD voltage levels.

A built-in E-Marker chip communicates cable capabilities to compatible USB-C equipment, helping the connected charging system identify supported power parameters. This makes the cable suitable for high-power laptops, docking stations, monitors and other USB-C devices designed to use advanced USB Power Delivery.

Actual charging power depends on the charger, connected device and negotiated USB PD profile.

40Gbps Data Transfer for Professional Workflows

For data-intensive applications, the WHZXC13 40Gbps USB-C cable delivers high-bandwidth connectivity between compatible USB4 devices.

Its performance is well suited to external solid-state drives, docking stations, high-performance peripherals and workstation accessories where rapid data movement can improve workflows involving backup, synchronization, large media files and project transfers.

For B2B buyers, combining charging, data and display capabilities in one cable can also simplify cable selection for multi-function USB-C installations and device bundles.

8K and High-Refresh-Rate Video Support

The WHZXC13 USB4 cable supports video configurations up to single 8K at 60Hz, 4K at 144Hz, or dual 4K at 60Hz when the connected source, display, dock and USB-C interface support the required video mode and bandwidth.

These capabilities make the cable suitable for professional monitors, editing workstations, presentation equipment, high-resolution display systems and multi-monitor desktop configurations.

The reversible USB Type-C connector design also provides convenient installation for offices, workstations and environments where devices are connected or repositioned frequently.

Key Specifications

Item	Specification
Model	WHZXC13
Connector	USB Type-C to USB Type-C
Cable Length	1 Meter
Data Transfer Rate	Up to 40Gbps
Maximum Power	Up to 240W
PD Voltage Support	28V, 36V and 48V, up to 5A
Video Output	Single 8K 60Hz, 4K 144Hz, Dual 4K 60Hz
E-Marker	Built-in E-Marker chip
Cable Jacket	PVC
Connector Housing	Aluminum alloy
USB Compatibility	USB4; backward compatible with USB 3.1, USB 3.0 and USB 2.0
Thunderbolt Compatibility	Compatible with Thunderbolt 3 and Thunderbolt 4 devices

Designed for Multiple USB-C Applications

The WHZXC13 240W USB4 cable is designed around the key specifications commercial buyers commonly evaluate when sourcing a full-function USB-C cable: power capacity, transfer bandwidth, display capability, device compatibility, construction and practical cable length.

Its PVC outer jacket provides a practical cable structure for regular use, while aluminum alloy connector housings create a clean and professional appearance suitable for consumer electronics, office equipment and system bundles.

Potential applications include USB-C laptop charging, docking stations, external SSD connections, professional displays, desktop workstations, data-transfer systems and high-resolution monitor installations.

USB4 and Thunderbolt Device Compatibility

WHZXC13 is compatible with USB4 equipment and devices using Thunderbolt 3 or Thunderbolt 4 USB Type-C connections. It also provides backward compatibility with previous USB generations, including USB 3.1, USB 3.0 and USB 2.0.

When connected to older interfaces, the cable operates according to the capabilities of the connected equipment rather than maintaining USB4 maximum performance.

Performance Notes

Maximum charging power, data transfer speed and video resolution require compatible source devices, chargers, ports, peripherals and displays.

Up to 240W charging requires compatible USB PD EPR equipment. Up to 40Gbps data transfer requires compatible USB4 or equivalent high-bandwidth devices. Likewise, 8K or high-refresh-rate video output depends on the host device, USB-C video capability, monitor, dock and selected display configuration.

Request WHZXC13 USB4 Cable Information

Looking for a 1M USB4 40Gbps cable with 240W Power Delivery, built-in E-Marker and 8K video support for your product line or connectivity project?

Send us your target application, required quantity and device environment to discuss the WHZXC13 USB-C to USB-C cable for your B2B sourcing requirements.
