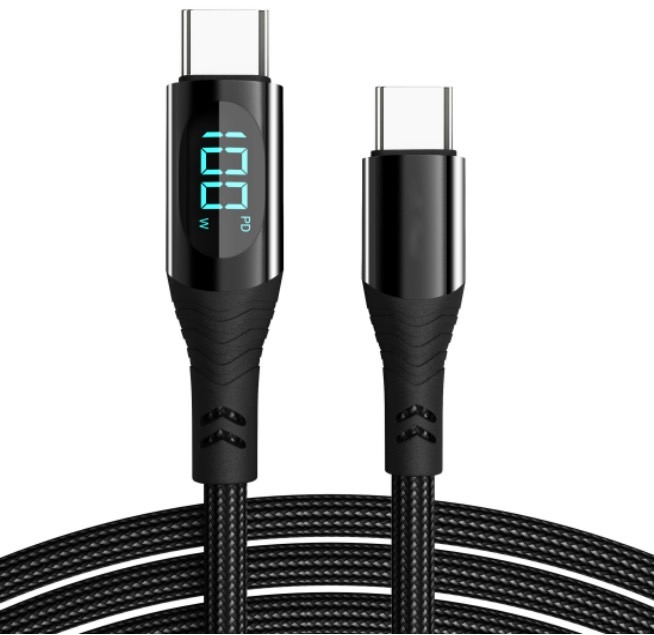

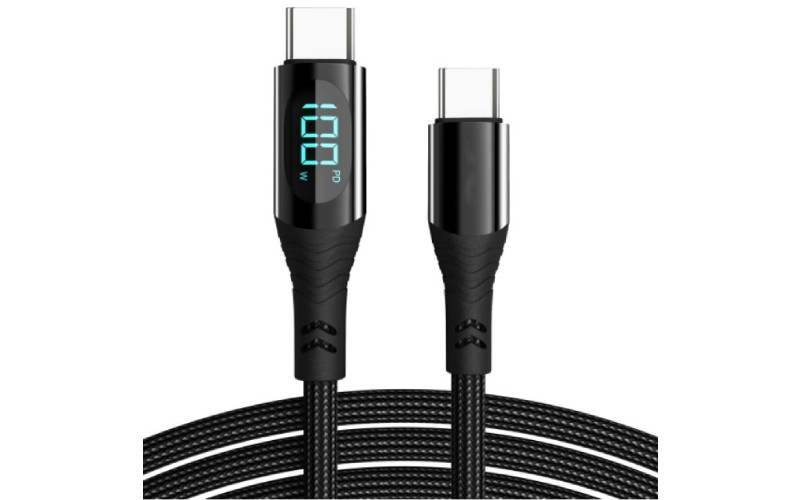

USB Type C to Type C Data charging cable

Visible Charging Information for USB-C Devices

The W-CC15LED USB Type C to Type C data charging cable combines high-power charging, everyday data transfer, and a built-in digital display in one practical accessory. During charging, the screen shows real-time wattage, giving users a convenient visual reference for the power being delivered to a connected device.

This visible-power feature differentiates the product from ordinary USB-C charging cables. Retailers can demonstrate the function quickly at a sales counter, while online sellers can clearly communicate its value through photographs and charging videos.

Displayed wattage may change during use because USB-C charging power is negotiated among the charger, cable, and connected device. Achieving maximum output requires a compatible 100W charger and a device capable of accepting the corresponding charging power.

Up to 100W Charging at 20V/5A

The cable supports charging power up to 100W, with a maximum rating of 20V/5A. It is suitable for compatible USB-C laptops, tablets, smartphones, power banks, charging adapters, hubs, and other Type-C interface equipment.

Its high-power capability gives B2B buyers one cable category for both mobile-device charging and selected computer applications. The 1.5-meter cable length provides practical reach for desks, workstations, meeting rooms, service counters, bedside charging, and travel adapters.

Actual charging speed depends on the specifications of the power adapter and receiving device. Lower-power equipment will charge at its supported level, while a compatible laptop may negotiate a higher charging profile.

HUSB332A E-Marker Chip

One USB-C connector integrates a HUSB332A E-Marker chip. This electronic marker is designed for USB Type-C cable identification and enables compatible equipment to recognize programmed cable characteristics, including current-handling and signaling information.

The component is especially relevant to a cable rated for 5A operation because it helps the USB-C Power Delivery system identify the cable during charging communication. For purchasing teams, the specified chip model provides a concrete component reference for sample evaluation, product comparison, and quality-control documentation.

The certification status of the chip should not be presented as certification of the complete cable. Buyers requiring USB-IF or market-specific compliance should request applicable finished-product test reports and supporting documents.

Multi-Protocol Fast-Charging Compatibility

The W-CC15LED is specified for compatibility with PD, QC 5.0, FCP, PPS, and Super Fast Charging applications. This multi-protocol positioning supports sales across different USB-C device ecosystems and gives distributors a versatile accessory for mixed customer portfolios.

Charging performance still requires the charger and connected device to support a matching protocol. The cable carries the negotiated power but cannot add a charging function or protocol to equipment that does not already support it.

USB 2.0 Data Transfer

In addition to high-power charging, the W-CC15LED supports USB 2.0 data communication for file synchronization and routine device connections. It can transfer documents, photographs, music, and other files between compatible USB-C devices at speeds up to 480Mbps.

The product should be positioned as a 100W charging cable with standard USB 2.0 data capability. It should not be advertised as a USB 5Gbps, USB 10Gbps, USB4, Thunderbolt, or video-output cable unless separate testing confirms those functions.

Black Aluminum and Plastic Connector Design

The connector assembly uses black aluminum and black plastic elements, creating a coordinated appearance suitable for mobile electronics, office accessories, and professional charging products. One connector houses the wattage display, keeping charging information visible during normal use.

The internal wire specification is listed as 70 × 0.10 × 2C + 10 × 0.10 × 4C/BC. Professional buyers can reference this information when reviewing samples, comparing cable constructions, or preparing internal technical sheets.

W-CC15LED Technical Specifications

Item	Specification
Model	W-CC15LED
Product Type	USB Type C to Type C data charging cable
Cable Length	1.5 meters
Maximum Power	100W
Maximum Rating	20V/5A
Smart Component	HUSB332A E-Marker chip
Display Function	Real-time charging wattage display
Data Standard	USB 2.0, up to 480Mbps
Charging Compatibility	PD, QC 5.0, FCP, PPS and Super Fast Charging
Connector Materials	Black aluminum and black plastic
Applicable Equipment	Compatible USB Type-C interface devices
Wire Specification	70 × 0.10 × 2C + 10 × 0.10 × 4C/BC

Designed for B2B Sales Channels

The W-CC15LED is suitable for electronics distributors, mobile-accessory wholesalers, online retailers, corporate procurement programs, and promotional-product sourcing. Its primary commercial selling points are straightforward: up to 100W charging, visible wattage information, an identified E-Marker chip, USB 2.0 data support, broad protocol compatibility, and a practical 1.5-meter length.

These features are easy to present in distributor catalogs, product comparison pages, retail demonstrations, independent websites, and online advertising campaigns.

Request a Wholesale Quotation

For an accurate quotation, provide your required quantity, destination market, intended chargers and devices, packaging format, compliance requirements, and expected delivery schedule.

When customized branding or packaging is required, include the preferred logo position, label content, barcode format, and target retail channel. Sample testing is recommended to confirm charging power, display performance, protocol compatibility, data transmission, and connector fit with the intended equipment before volume ordering.

Contact our sales team for sample information, MOQ, lead time, packaging details, available test documents, and volume pricing for the W-CC15LED USB Type C to Type C data charging cable.
