Compact PCI 1 Port Printer Card (Low Profile) W-9805-1P-L for Parallel Port Expansion

Product Overview

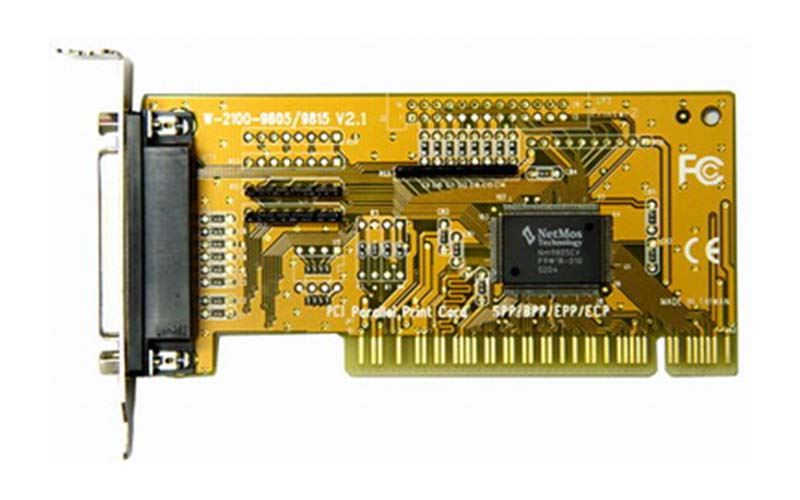

PCI 1 Port Printer Card (Low Profile) W-9805-1P-L adds one parallel printer interface to a compatible desktop computer through an available PCI slot. Its low-profile construction is suitable for compact computers and small-form-factor systems where internal installation space is limited.

This card provides a practical solution for businesses that continue to operate parallel-interface printers, production equipment, testing devices, or other established peripherals. Instead of replacing functional equipment because a newer computer does not include a built-in parallel port, users can restore the required connection by installing an internal PCI expansion card.

The W-9805-1P-L combines low-power operation with support for commonly used IEEE 1284 communication modes, making it suitable for system integration, equipment maintenance, industrial computer upgrades, and legacy peripheral connectivity.

Key Features of PCI 1 Port Printer Card

Technical Specifications

Multi-Mode Parallel Communication

Different printers and parallel peripherals may require different communication modes. The W-9805-1P-L supports SPP for conventional printer communication, PS/2 mode for bidirectional byte transfer, EPP for enhanced peripheral communication, and ECP for higher-performance bidirectional data exchange.

The integrated 16-byte FIFO is used during ECP operation to buffer data and support smoother transfers between the host computer and the connected peripheral. Maximum parallel data rates reach up to 1.5 MB/s, although actual performance depends on the computer, driver, operating mode, cable, software, and connected equipment.

Legacy-port remapping can help in software environments that expect established parallel-port resources. Because PCI systems assign resources during startup, buyers should confirm whether their application requires a specific I/O address and whether the driver or application software supports the required configuration.

Software and System Compatibility

The controller platform lists driver support for Windows 95, Windows 98SE, Windows ME, Windows NT, Windows 2000, Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7, and Linux kernel 2.4.x or 2.6.x, depending on the system architecture.

Compatibility should be checked before purchasing. Newer operating systems, 64-bit environments, specialized application software, or equipment requiring direct legacy addressing may need additional verification.

Buyers are advised to provide the operating system, computer or motherboard model, available PCI slot, connected peripheral model, and required parallel communication mode when requesting compatibility confirmation.

Typical Applications

PCI 1 Port Printer Card (Low Profile) W-9805-1P-L can be used in computer systems that need to retain, restore, or add a conventional parallel interface.

• Connecting compatible legacy parallel printers

• Upgrading industrial computers without built-in parallel ports

• Maintaining equipment repair and testing workstations

• Expanding embedded computer input and output connections

• Supporting production systems that use parallel-interface peripherals

• Replacing a failed onboard printer port

• Integrating established hardware with compatible PCI desktop computers

Actual suitability depends on the connected device, available driver, selected communication mode, cable configuration, operating system, and application requirements.

Why Choose PCI 1 Port Printer Card W-9805-1P-L?

For B2B buyers, the W-9805-1P-L provides a focused expansion configuration: one compatible PCI slot adds one parallel printer port without introducing unnecessary interfaces. Its low-profile format supports compact system builds, while IEEE 1284 multi-mode compatibility addresses different printer and peripheral communication requirements.

The card is suitable for distributors, computer system builders, industrial maintenance providers, repair companies, equipment integrators, and project buyers responsible for supporting installed equipment over an extended service life.

Before placing an order, customers should confirm the enclosure size, PCI slot type, operating system, system architecture, connected peripheral model, required communication mode, and expected purchase quantity.

Information Required for an Inquiry

To receive an accurate quotation and compatibility review, please include the following information in your inquiry:

• Required order quantity and delivery destination

• Computer model, motherboard model, and available PCI slot

• Operating system and 32-bit or 64-bit architecture

• Connected printer or peripheral model

• Required SPP, PS/2, EPP, or ECP communication mode

• Packaging, labeling, documentation, or OEM requirements

Submit your project and purchasing information to receive product confirmation, commercial terms, and supply support for your PCI parallel port expansion requirements.
