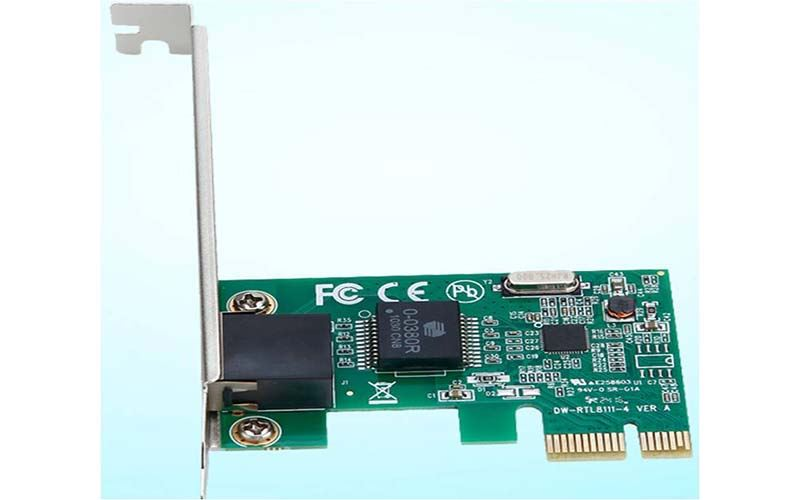

W-E1000 Gigabit SPCI-E Expansion Card with RJ45 Ethernet Port

W-E1000 SPCI-E Expansion Card Overview

The W-E1000 SPCI-E Expansion Card is a wired Gigabit Ethernet expansion solution designed for desktop computers, workstations, servers, industrial PCs, and other systems that require an additional RJ45 network connection through a PCI Express interface.

Built around the Realtek 8111F chipset, the W-E1000 supports 10/100/1000 Mbps network speeds and delivers a maximum data transfer rate of 1000 Mbps. It connects through a PCI Express x1 interface and provides one external RJ-45 female port for standard wired Ethernet applications.

For system integrators, computer hardware distributors, network equipment suppliers, OEM buyers, and maintenance teams, the W-E1000 provides a practical way to add or replace Gigabit Ethernet connectivity in compatible PCI Express systems.

Key Features of the W-E1000

The W-E1000 PCI-E Expansion Card combines Gigabit Ethernet performance, broad operating system support, and standard RJ45 connectivity.

• Realtek 8111F chipset

• Wired Ethernet connectivity

• Supports 10/100/1000 Mbps network speeds

• Maximum transfer rate of 1000 Mbps

• PCI Express x1 interface

• One external RJ-45 female port

• Auto MDIX support

• Full duplex support

• Jumbo Frame support up to 9K

• Supports CSMA/CD protocol

• Compatible with IEEE 802.3, 802.3u, 802.3x, and 802.3ab

• Gigabit Detect and Link/Activity LED indicators

• MTBF of 376,212 hours

• 12-month warranty

• Supports Windows, Windows Server, Mac OS, and Linux systems

Technical Specifications

Specification	Details
Model	W-E1000
Product Type	SPCI-E Expansion Card
Chipset	Realtek 8111F
Connectivity	Wired
Network Speed	10/100/1000 Mbps
Maximum Data Transfer Rate	1000 Mbps
Interface Type	PCI Express x1
External Port	1 x RJ-45 Female
PCI-E Connector	1 x PCI Express x1 Male
Auto MDIX	Yes
Full Duplex	Yes
Jumbo Frame	Up to 9K
Supported Protocol	CSMA/CD
MTBF	376,212 Hours
PCB Colour	Green
Warranty	12 Months

Realtek 8111F Gigabit Ethernet Controller

The W-E1000 SPCI-E Expansion Card uses the Realtek 8111F chipset to provide wired Ethernet connectivity for compatible computer systems.

For B2B buyers, the controller chip is an important specification when evaluating a network expansion card because it helps identify the card platform and expected compatibility.

The Realtek 8111F-based design supports 10 Mbps, 100 Mbps, and 1000 Mbps network environments, making the W-E1000 suitable for systems that need flexible Ethernet connectivity across multiple network speeds.

10/100/1000 Mbps Network Support

The W-E1000 supports three standard Ethernet speed levels.

Network Standard	Supported Speed
Ethernet	10 Mbps
Fast Ethernet	100 Mbps
Gigabit Ethernet	1000 Mbps

Its maximum data transfer rate reaches 1000 Mbps, making the card suitable for Gigabit Ethernet network connections when used with compatible network infrastructure, cables, and devices.

This flexible speed support allows one PCI-E network expansion card to work across different wired network environments.

PCI Express x1 Interface

The W-E1000 uses a PCI Express x1 interface to connect with the host computer.

A PCI Express expansion slot is required for installation. Before ordering, system builders and integrators should confirm that the target motherboard has an available compatible PCI Express expansion card slot.

The PCI Express x1 format makes the W-E1000 suitable for adding an extra network interface to compatible desktops, servers, workstations, and industrial computer systems.

RJ45 Wired Ethernet Connectivity

The card features one external RJ-45 female network port for standard wired Ethernet connections.

This makes the W-E1000 suitable for applications where reliable cable-based network connectivity is preferred, including:

• Desktop network expansion

• Server Ethernet connectivity

• Industrial PC integration

• Workstation upgrades

• Replacement of an existing network interface

• System assembly and maintenance

• Wired LAN applications

The card also supports Auto MDIX, reducing the need to manually distinguish between certain Ethernet cable connection types in compatible network environments.

Full Duplex and Jumbo Frame Support

The W-E1000 SPCI-E Expansion Card supports full duplex communication.

Full duplex operation allows compatible network devices to transmit and receive data at the same time, helping improve communication efficiency compared with half-duplex network operation.

The card also supports Jumbo Frames up to 9K.

For compatible network environments, larger frame sizes can be useful when handling larger volumes of Ethernet data. Actual Jumbo Frame performance depends on the complete network environment, including switches, operating systems, and other connected equipment.

IEEE Network Standards

The W-E1000 supports multiple widely used IEEE Ethernet standards.

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

• IEEE 802.3ab

These specifications cover Ethernet, Fast Ethernet, flow control, and Gigabit Ethernet functionality, helping the card integrate into standard wired network infrastructures.

LED Status Indicators

The W-E1000 includes two LED indicators for quick network status checking:

• 1 yellow Gigabit Detect indicator

• 1 green Link/Activity indicator

These LEDs provide convenient visual feedback about network connection and activity status, which can be useful during installation, troubleshooting, system testing, and routine maintenance.

Physical and Environmental Specifications

The W-E1000 has a compact card design suitable for compatible computer expansion systems.

Physical Specification	Value
Product Length	3.07 in / 78 mm
Product Width	4.7 in / 120.3 mm
Product Height	0.7 in / 18 mm
Operating Temperature	0°C to 70°C
Storage Temperature	0°C to 100°C
Operating Humidity	10% to 90% RH

These specifications allow system integrators to evaluate the card against available chassis space and intended operating conditions before installation.

Broad Operating System Support

The W-E1000 PCI-E Expansion Card supports a range of Windows, Windows Server, Mac OS, and Linux environments.

Supported software environments include:

• Windows 8 / 8.1 32-bit and 64-bit

• Windows 7 32-bit and 64-bit

• Windows Vista 32-bit and 64-bit

• Windows XP 32-bit and 64-bit

• Windows 2000

• Windows Server 2012

• Windows Server 2008 R2

• Windows Server 2003 32-bit and 64-bit

• Mac OS 10.x for Intel-based systems, tested up to 10.9

• Linux 2.4.x and later, tested up to 3.5

Customers should confirm their exact operating system environment and driver requirements before deployment.

Why Choose the W-E1000 PCI-E Expansion Card?

The W-E1000 is a practical choice for B2B buyers seeking a single-port PCI-E Gigabit Ethernet expansion solution.

Its combination of Realtek 8111F chipset, PCI Express x1 interface, 10/100/1000 Mbps support, RJ45 connectivity, Auto MDIX, full duplex operation, 9K Jumbo Frame support, and broad software compatibility makes it suitable for a variety of system integration and network expansion applications.

With an MTBF specification of 376,212 hours and a 12-month warranty, the W-E1000 also provides clearly defined reliability and after-sales parameters for procurement evaluation.

Request a Quote for W-E1000 SPCI-E Expansion Card

Looking for a W-E1000 SPCI-E Expansion Card for system integration, distribution, network upgrades, or replacement projects?

Send us your required quantity, operating system, motherboard interface, application, and purchasing requirements. We can provide additional product information and quotation details to help you evaluate the W-E1000 for your project.

Contact us today to request pricing for the W-E1000 PCI-E Gigabit Ethernet Expansion Card.
