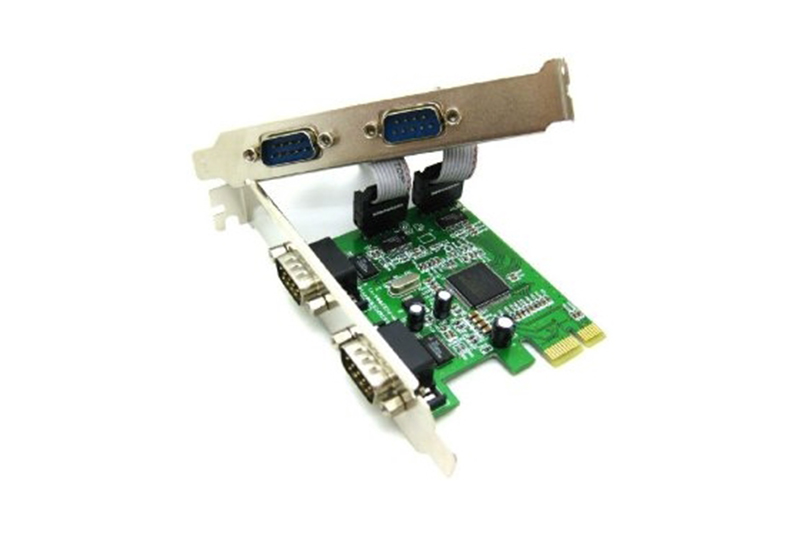

Reliable PCI-E 4-Port RS232 Serial Expansion Card

Expand One Computer with Four RS232 Ports

The PCI-E 4-port RS232 card provides a practical way to add four serial communication interfaces to a compatible desktop computer. Each 9-pin RS232 connector can be used for equipment that depends on conventional serial data transmission, helping users integrate multiple devices without installing several separate expansion cards.

With four ports available from one PCI Express slot, the card supports organized workstation expansion while reducing the number of occupied motherboard slots. It is suitable for system upgrades, equipment integration, testing environments, maintenance stations, and computers that still need dependable communication with RS232 hardware.

Technical Specifications

Flexible Serial Communication Settings

Different serial devices may require different communication parameters. This PCI-E 4-port RS232 card provides several configurable formats, allowing connected equipment to operate with 5, 6, 7, or 8 data bits. Available parity settings include none, even, odd, space, and mark, while stop bits can be configured as either 1 or 2.

These options help the card accommodate a broad range of compatible serial devices and software configurations. Before installation, users should confirm that the baud rate, data bits, parity, stop bits, and flow-control requirements of the connected equipment match the available settings.

Up to 115200 bps Data Transmission

Serial communication speeds of up to 115200 bps support common control, monitoring, configuration, and data-exchange tasks. Full-duplex operation allows data to be transmitted and received through the communication channel, while RS232 hardware flow control helps coordinate data movement between the computer and connected devices.

The 16C550-compatible UART architecture and integrated transmit-and-receive FIFO assist with serial data handling. This combination makes the card suitable for systems that need to maintain stable communication across several RS232 connections.

Operating System Compatibility

Supported operating systems include:

• Windows 7, Windows 8, Windows Vista, Windows XP, and Windows 2000 in 32-bit environments

• Windows 7, Windows 8, Windows Vista, Windows XP, and Windows Server 2003 in 64-bit environments

• Linux kernel 2.6.x

System compatibility should be confirmed before ordering, particularly when the card will be installed in newer operating systems or customized computing environments. Driver availability, motherboard architecture, PCI Express slot compatibility, and connected-device requirements should all be checked in advance.

Suitable Application Scenarios

The PCI-E 4-port RS232 card can be considered for computers that communicate with compatible serial equipment in industrial, technical, service, and office environments. Typical applications may include:

• Connecting serial control or monitoring equipment

• Integrating legacy RS232 devices with PCI Express computers

• Building maintenance and diagnostic workstations

• Supporting laboratory or equipment-testing systems

• Connecting compatible point-of-sale peripherals

• Managing access-control or attendance equipment

• Communicating with measurement and data-acquisition devices

• Expanding serial connectivity for system configuration tasks

Actual compatibility depends on the interface standard, serial settings, driver, operating system, and communication protocol required by each connected device.

Why Choose This PCI-E 4-Port RS232 Card?

Four serial interfaces on one card offer a convenient solution for installations that require several RS232 connections. The combination of 9-pin ports, configurable communication formats, hardware flow control, 16C550 UART compatibility, and support for selected Windows and Linux systems provides a clear foundation for serial expansion projects.

For an accurate quotation or compatibility assessment, provide the computer operating system, available PCI Express slot, required RS232 settings, connected-device type, and expected order quantity when sending an inquiry.
