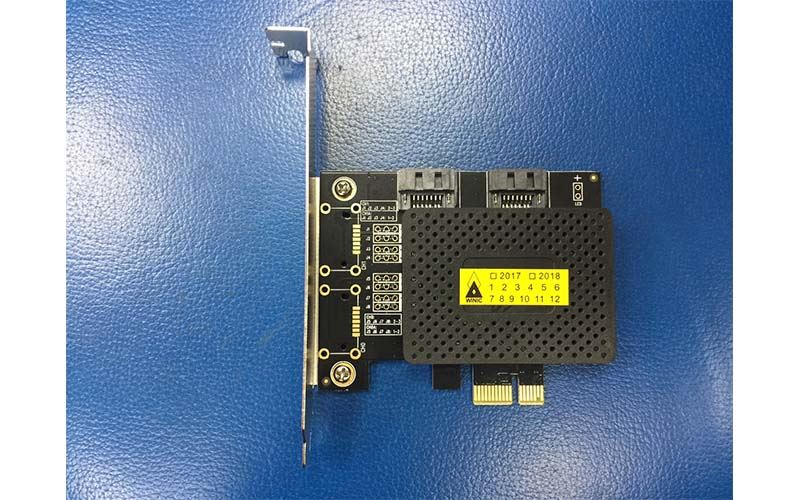

W-SATA1061-2 High-Speed PCI-E Expansion Card with SATA 3.0 and eSATA 3.0

W-SATA1061-2 PCI-E Expansion Card Overview

The W-SATA1061-2 PCI-E Expansion Card is designed for desktop computers, workstations, industrial PCs, storage systems, and other compatible devices that require additional SATA or eSATA connectivity through a PCI Express interface.

Built with the ASM1061 chipset, this PCI-E storage expansion card provides 2 SATA 3.0 ports and 2 eSATA 3.0 ports, offering flexible connection options for internal and external storage devices. It uses a PCIe x1 interface and supports transmission speeds up to 6Gbps.

For computer hardware distributors, system integrators, storage solution providers, OEM buyers, and other B2B customers, the W-SATA1061-2 provides a practical solution for expanding high-speed storage interfaces without replacing the existing motherboard.

Key Features of W-SATA1061-2

The W-SATA1061-2 PCI-E Expansion Card combines SATA 3.0 connectivity, eSATA expansion, and PCI Express integration in one compact storage controller solution.

• Model: W-SATA1061-2

• ASM1061 chipset

• PCIe x1 interface

• 2 x SATA 3.0 ports

• 2 x eSATA 3.0 ports

• Maximum transmission speed up to 6Gbps

• Suitable for internal and external storage expansion

• Product status: Stock

• Color box packaging

• OEM service available

• ODM service available

• 12-month warranty

• Manufactured in Guangdong, China

Technical Specifications

Specification	Details
Model	W-SATA1061-2
Product Type	PCI-E Expansion Card
Item Name	SATA Adapter / PCI Express Connector Card
Chipset	ASM1061
PCI Express Interface	PCIe x1
Internal Ports	2 x SATA 3.0
External Ports	2 x eSATA 3.0
Transmission Speed	Up to 6Gbps
Product Status	Stock
Supply Type	OEM & ODM Service
Package	Color Box
Warranty	12 Months
Place of Origin	Guangdong, China

ASM1061 Chipset for SATA Storage Expansion

The W-SATA1061-2 uses the ASM1061 chipset as the core controller for its SATA expansion functions.

For system integrators and technical buyers, chipset information is an important factor when selecting a PCI-E Expansion Card because it helps identify the hardware platform and evaluate whether the card is suitable for the intended system.

The ASM1061-based design supports high-speed SATA connectivity while allowing users to add additional storage interfaces through an available PCI Express slot.

This makes the W-SATA1061-2 a useful option when the motherboard does not provide enough SATA connections or when additional external eSATA connectivity is required.

2 SATA 3.0 Ports for Internal Storage

The W-SATA1061-2 provides two SATA 3.0 ports for connecting compatible internal storage devices.

These ports can be used in systems that need additional storage connectivity beyond the SATA interfaces already available on the motherboard.

Typical internal storage applications may include:

• Desktop storage expansion

• Workstation upgrades

• Industrial computer storage

• System assembly projects

• Replacement or upgrade applications

• Additional internal drive connectivity

The SATA 3.0 interface supports transmission speeds up to 6Gbps, helping provide high-speed communication between the host system and compatible storage devices.

Actual transfer performance depends on the connected storage device, host system, operating environment, and other hardware factors.

2 eSATA 3.0 Ports for External Storage

In addition to its two internal SATA ports, the W-SATA1061-2 also provides two eSATA 3.0 connections.

This gives the card additional flexibility for systems that need external storage connectivity.

Connection Type	Number of Ports	Typical Use
SATA 3.0	2	Internal Storage Devices
eSATA 3.0	2	External Storage Devices
PCIe x1	1	Host System Connection

For B2B customers, having both SATA and eSATA ports on one PCI-E expansion card can simplify sourcing when one system needs a combination of internal and external storage interfaces.

Up to 6Gbps Transmission Speed

The W-SATA1061-2 PCI-E Expansion Card supports data transmission speeds of up to 6Gbps.

This specification makes it suitable for SATA 3.0 storage applications where higher interface bandwidth is required.

Compared with earlier SATA generations, a 6Gbps interface provides greater available bandwidth for compatible storage devices.

However, actual real-world performance is determined by several factors, including:

• Storage device performance

• Motherboard configuration

• PCI Express interface

• System software

• Connected cables

• Overall system architecture

For technical projects, customers should provide their system configuration when requesting product information so compatibility can be evaluated more accurately.

PCIe x1 Interface for Easy System Integration

The W-SATA1061-2 connects to the host system through a PCIe x1 interface.

A compatible PCI Express expansion slot is therefore required for installation.

For system integrators and equipment manufacturers, the PCIe x1 design provides a straightforward method of adding additional storage interfaces to an existing motherboard.

Before ordering, buyers should check:

• Available PCI Express slots

• Motherboard configuration

• Chassis space

• Required SATA and eSATA port quantity

• Target storage devices

Providing these details during the inquiry process can help simplify product selection.

Suitable for Storage Expansion Projects

The W-SATA1061-2 PCI-E Expansion Card can be considered for a variety of storage expansion applications.

Typical use cases include:

• Desktop computer upgrades

• Workstation storage expansion

• Industrial PC integration

• External storage connectivity

• System assembly

• Hardware maintenance

• Computer accessory distribution

• OEM storage equipment projects

Its combination of two SATA 3.0 ports and two eSATA 3.0 ports makes it particularly useful for systems that require both internal and external storage connections.

OEM and ODM Service

The W-SATA1061-2 is available with OEM and ODM service for B2B customers.

This makes the product suitable for hardware brands, distributors, wholesalers, system integrators, and other buyers who may require customized purchasing solutions.

Customers can discuss specific project requirements such as:

• Order quantity

• Packaging requirements

• Product supply needs

• OEM cooperation

• ODM cooperation

The standard product is supplied in a color box, while further requirements can be discussed according to the project.

Stock Availability and 12-Month Warranty

The W-SATA1061-2 is listed as a stock product, which can be an important consideration for buyers who require established product availability.

The product also comes with a 12-month warranty.

For distributors and system integrators, clearly defined warranty information can help simplify procurement evaluation and after-sales planning.

Why Choose the W-SATA1061-2 PCI-E Expansion Card?

The W-SATA1061-2 provides a practical combination of internal SATA and external eSATA expansion through a PCI Express platform.

Its main advantages include:

• ASM1061 chipset

• 2 SATA 3.0 ports

• 2 eSATA 3.0 ports

• PCIe x1 interface

• Up to 6Gbps transmission speed

• Stock availability

• OEM and ODM service

• 12-month warranty

These features make the W-SATA1061-2 suitable for B2B buyers looking for a flexible PCI-E storage expansion card for distribution, integration, upgrade, or OEM projects.

Request a Quote for W-SATA1061-2

Looking for a W-SATA1061-2 PCI-E Expansion Card for storage expansion, system integration, distribution, or OEM projects?

Send us your required quantity, motherboard configuration, storage interface requirements, packaging needs, and application details. We can provide additional product information and quotation details based on your purchasing requirements.

Contact us today to request pricing for the W-SATA1061-2 SATA 3.0 and eSATA 3.0 PCI-E Expansion Card.
